Shakespeare Hardback Book, Three-Stringed Electric Guitar

Shakespeare Hardback Book, Three-Stringed Electric Guitar

IMG_1500IMG_1505Version 2

I had a crazy idea to make a book into a guitar and this is the product. It took a while to find the right book, but eventually, I landed on this copy of the Complete Works of William Shakespeare. It was a mix of the correct size and thickness; plus, it’s Shakespeare.

I did some quick Internet research and didn’t see any other “book guitars”, so I assumed I was in fairly uncharted waters. I took some time and thought about how I should best proceed. In the end, a straight edge and razor blade seemed the best course.

I would be lying if I told you that the first cut was easy. I’m not in the business of destroying books, but…

IMG_1327IMG_1328IMG_1329IMG_1330IMG_1331

I found the center of the book and measured the width of the neck wood. Then, I taped it off and drew the lines. I cut out the side first, to the depth of the neck, and then cut the center to the same depth. After the center was removed, I set the temporary neck in the center and replaced the side pages—everything fit great.

IMG_1462

Next, I fastened the outer pages to the back cover with some flat, low profile bolts. I drilled through the pages and back cover, installed the bolts, and then chiseled a small area on the inside of the front cover to allow for the other end of the bolt. Now, the pages wouldn’t fall out and it would be a secure area for the electronics.

IMG_1461IMG_1466IMG_1468IMG_1467

I cut down the neck, glued it, and carved the Double Razorblade head design that will be my official Junk Shop Audio head going forward. I cut a channel for my Junk Shop Audio Nd144 pickup and stained the neck with a steel wool and balsamic vinegar blend that looks awesome.

IMG_1479

I fastened the neck through the back of the book with flat furniture bolts. These bolts come in a variety of colors and are strong—the neck was firmly attached and the bolts looked cool.

IMG_1482IMG_1481

To hold the pickup in place, I used some metal scraps from the 9v adaptor deconstruction. I lined them up on the neck, grabbed them with a length of duct tape, and placed the tape in the correct area on the back of the book cover. the magnets on the pickup will attract to the steel scraps.

IMG_1483

I cut a hole for the 1/4″ jack and a small channel between the jack hole and pickup for the wire.

IMG_1484IMG_1501

I installed the small piece of angle with three brass screws. and then added the simple machines—made of ground thumb screws and rod nuts—and a bridge made of a cut bolt, filed flat on the bottom.

IMG_1502

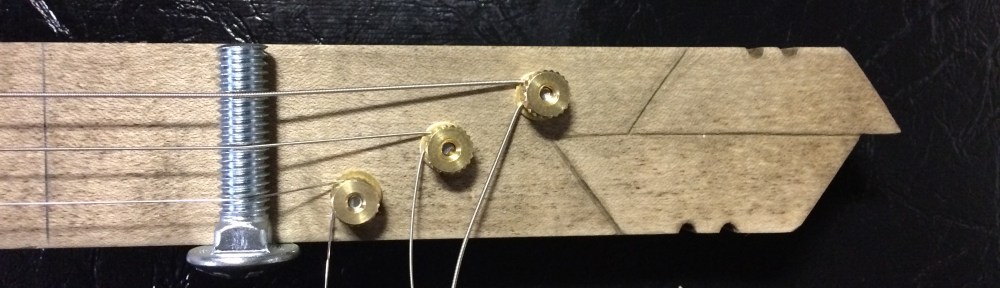

For the head, I used stainless bolts, brass washers, and brass knurl nuts to hold the strings in place and a cut bolt for the nut. The frets are drawn on in pencil, because I may add a fretboard and frets in the future.

Acoustically, the guitar sounds better and louder that I thought it would; amplified, it sounds like any other guitar.

Thanks,
