Teeth for Days – Wall Hanger to Electric Guitar with Homemade Modular Pickup

Some people turn guitars into wall hangers—in this case, I turned a wall hanger into an electric guitar. My dad was cruising through a thrift store when he ran across this guy for $2.92. Later, he handed it to me and challenged me to make a working guitar out of it…so that’s what the bunny is going to bring him—Happy Easter Greg!!!

Two things were important for me to accomplish in this mod—first, the face had to remain as clean as possible and second, the wiring had to be minimal.

Bridge and Nut:

Given that I wanted very little interference on the face, I installed string ferrules through the back of the body and positioned them at the gum line on the face to reduce the visual impact. I added a 3/8″ diameter length of brass rod for the bridge and cut down a smaller brass bolt for the nut, which created a string height acceptable for slide playing.

Tuners:

I installed a set of “aged bronze” looking tuners. Only five would fit comfortably across the top and keep the strings within the parameter of the head; therefore, I placed one of the tuners on the bottom, which looks pretty natural. I also installed some small, tarnished screws to guide and add tension to the strings.

Pickup and Output Jack:

For the pickup I carved about a 1/4″ – 3/8″ deep rectangle into the back of the body where I would later install the pickup and then superglued an old razor blade to the bottom of the carved hole. Recall that I wanted minimal wiring, so I decided to to create a modular pickup and output jack pairing that could be easily removed and installed. I started with two JSC Nd144 Electromagnetic Cigar Box Guitar Pickups taped together.

Then, I assembled a homemade output jack from a steel spacer, a brass picture hanger and a bit of electrical tape. I wired the jack to the pickup and taped everything together into one unit. The strong, neodymium magnets on top of the pickup would attach the modular unit to the back of the guitar via the steel razor blade.

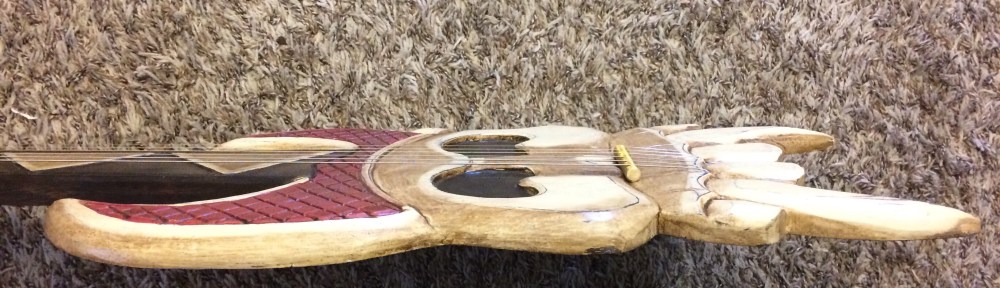

I’m impressed with how well this frame has handled the force of the strings—though I took it easy with 9s, I still wasn’t sure what would happen when I tuned up. Additionally, for as thin as the body is, the guitar actually projects more sound than I anticipated, but it can always be plugged in via the modular pickup system. Nevertheless, this was an interesting build and I think my dad will be happy with the results.

Check out this quick and dirty video demonstration:

Thanks,
